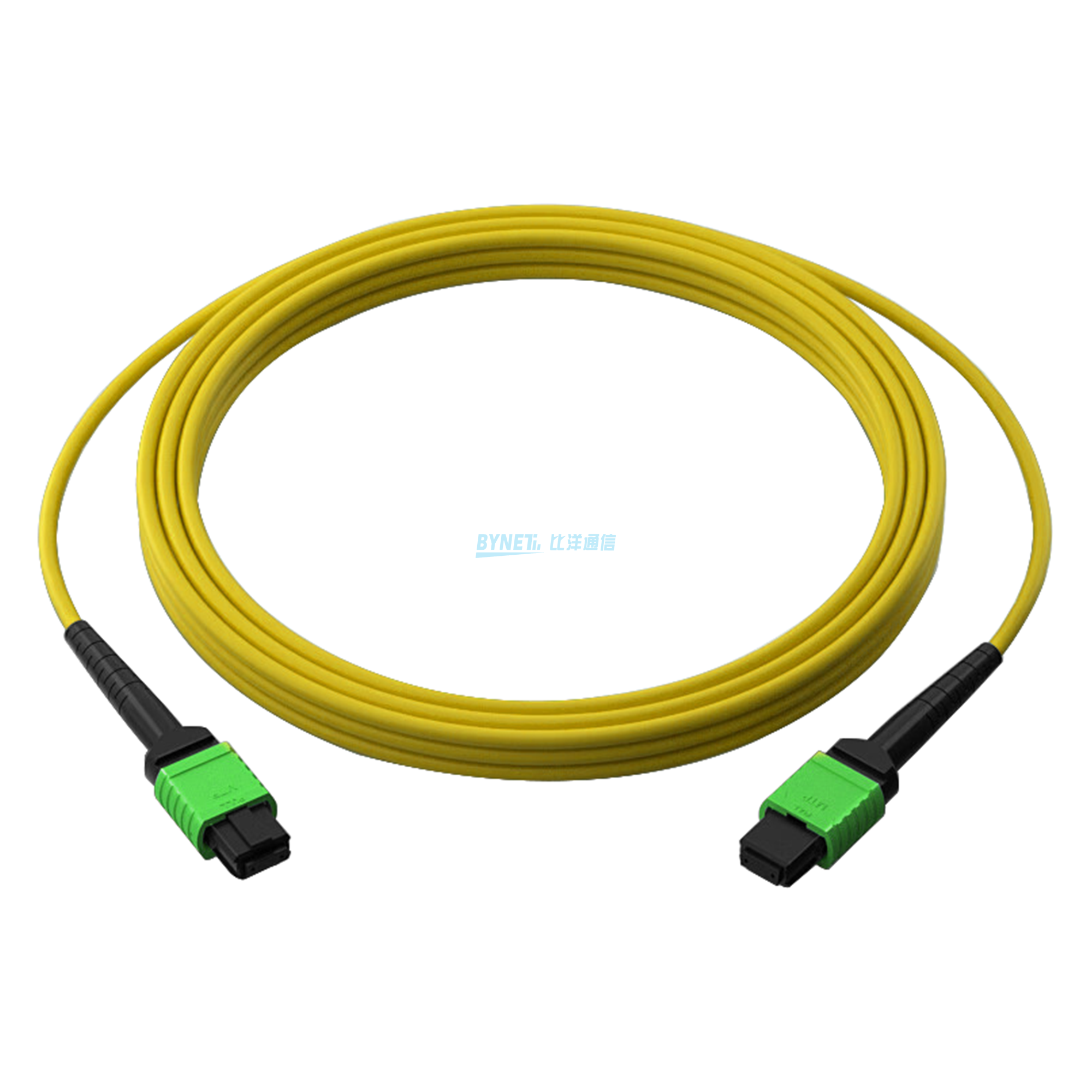

MPO/MTP Patch Cords are widely used in the data center because they can greatly save space and labor cost. Based on single MT ferrule technology, the MPO cable assemblies provide up to 48 fiber connections in a single point. The assemblies can be terminated with MPO on both ends, or MPO on one end and other traditional connectors like LC/SC/FC/ST on the other end. And the applied cables can be multi core bare ribbon or round trunk cable up to 288f.
CONSULT|
Construction |
Description |
|
|
Fiber Count |
4~288f |
|
|
Fiber Mode |
SM: G652, G657 MM: OM1, OM2, OM3, OM4 |
|
|
MT ferrule |
12/16/24/32c |
|
|
Connector Brand |
USConec MTP, SENKO MPO, Nissin MPO or Others |
|
|
Operating temperature |
-40℃~+85℃ |
|
|
Insertion Loss(dB) |
Singlemode: |
Multimode: |
|
Low Loss≤0.35 (typical: ≤ 0.25) |
Low Loss≤0.35 (typical: ≤ 0.2) |
|
|
Standard Loss≤0.75 (typical: ≤ 0.4) |
Standard Loss≤0.6 (typical: ≤ 0.35) |
|
|
Return Loss(dB) |
Singlemode: |
Multimode: |
|
PC≥50, APC≥60 |
PC≥20, APC≥40 |
|
|
Durability |
≤0.2dB typical change 50 matings |
|
